Series DuraStyle Toilets #253759

Toilet wall-mounted for shower toilet seat #253759

Design by Matteo Thun & Antonio Rodriguez

Toilet wall-mounted for shower toilet seat, 2537590000 White High Gloss, Flush water quantity: 4,5/3 l

Item may differ from picture. Decorations and accessories are not included.

Top Downloads

Washdown model, Flushing rim: Closed, Flush principle: washdown model, Outlet drain horizontal, Fixing included: Durafix, Incl. connecting set for SensoWash

Dimension

Color

Data sheet

Variants

select

Color 00, White High Gloss, Flush water quantity: 4,5/3 l

376x620 mm

30.800 kg

2537590000

Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.

Accessory

	Dimension	Weight	Order number
Pre-installation set	105 mm	0.43 kg	005072

Noise reduction set	420 mm	0.2 kg	005090

Connector Set	260 mm	0.385 kg	100730
Shower toilets
Connector Set	220 mm	0.45 kg	100692
Shower toilets
Connector Set	220 mm	0.55 kg	100691
Shower toilets

Suitable products

Downloads

File filter

Revit RFA

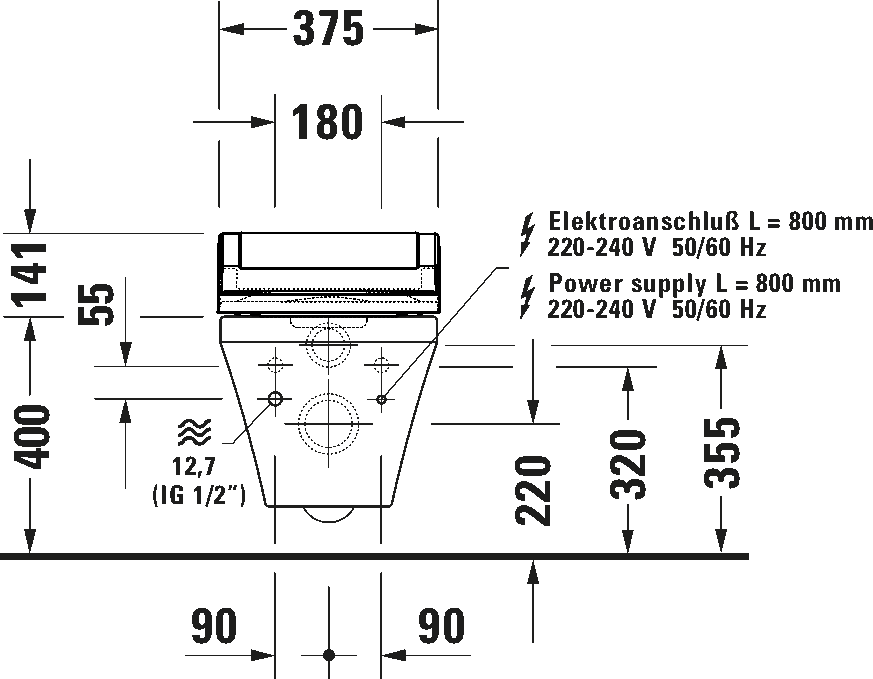

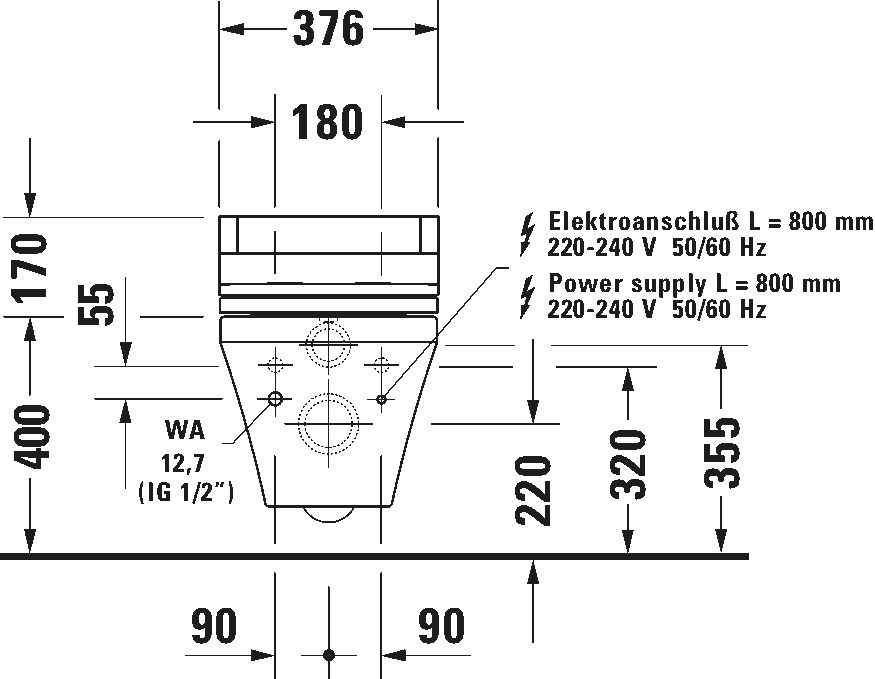

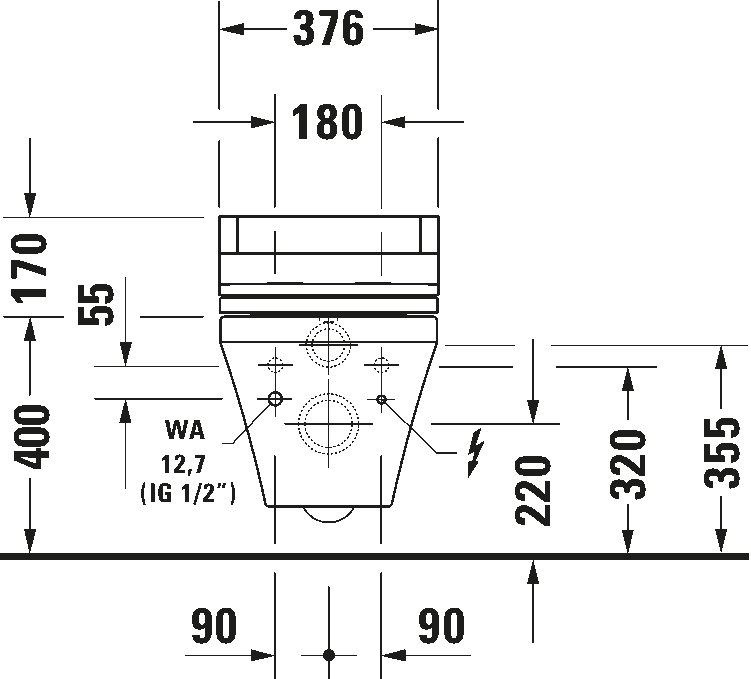

Technical drawings (TIFF)

CAD drawings 2D (DWG)

CAD drawings 2D (DXF)

CAD drawings 3D (DWG)

CAD drawings 3D (DXF)

CAD drawings 3D (STP)

Product images (TIFF)

Documents (PDF)

Hint:

Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Upon request cut-out templates are available from Duravit. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customised installation scenarios, can only be taken from the finished ceramic piece.
