Series DuraStyle Whirltubs #760298

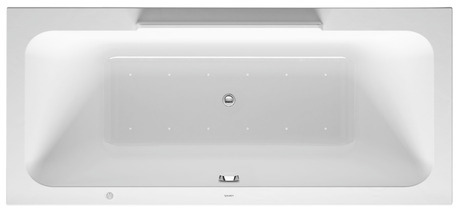

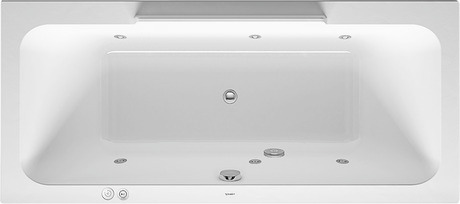

Whirltub #760298
Design by Matteo Thun & Antonio Rodriguez
Item may differ from picture. Decorations and accessories are not included.
Rectangular, 1800x800 mm, Type of installation: built-in, White, Material: Sanitary acrylic, Number of backrests: 2, Incl. support frame, Incl. waste and overflow, Waste outlet position: Middle, Overflow position: Middle, Capacity: 180 l, Internal depth: 460 mm
Variants
| Color 00, Jet-System, 50 Hz | 1800x800 mm | 47.000 kg | 760298000JS1000 | |
Suitable setting
| Dimension | Weight | Order number | ||
|
Bathtub anchors | 0.63 kg | 790103 | |
|
Waste and overflow with inlet | 1.7 kg | 791227 | |
| Base inlet, Quadroval, Bowden cable length: 940 mm, Diameter waste plug: 52 mm | ||||
|
Waste and overflow with inlet | 0.7 kg | 791206 | |
| Tub filler, Quadroval, Bowden cable length: 750 mm, Diameter waste plug: 52 mm |
Suitable products
Downloads
Hint:

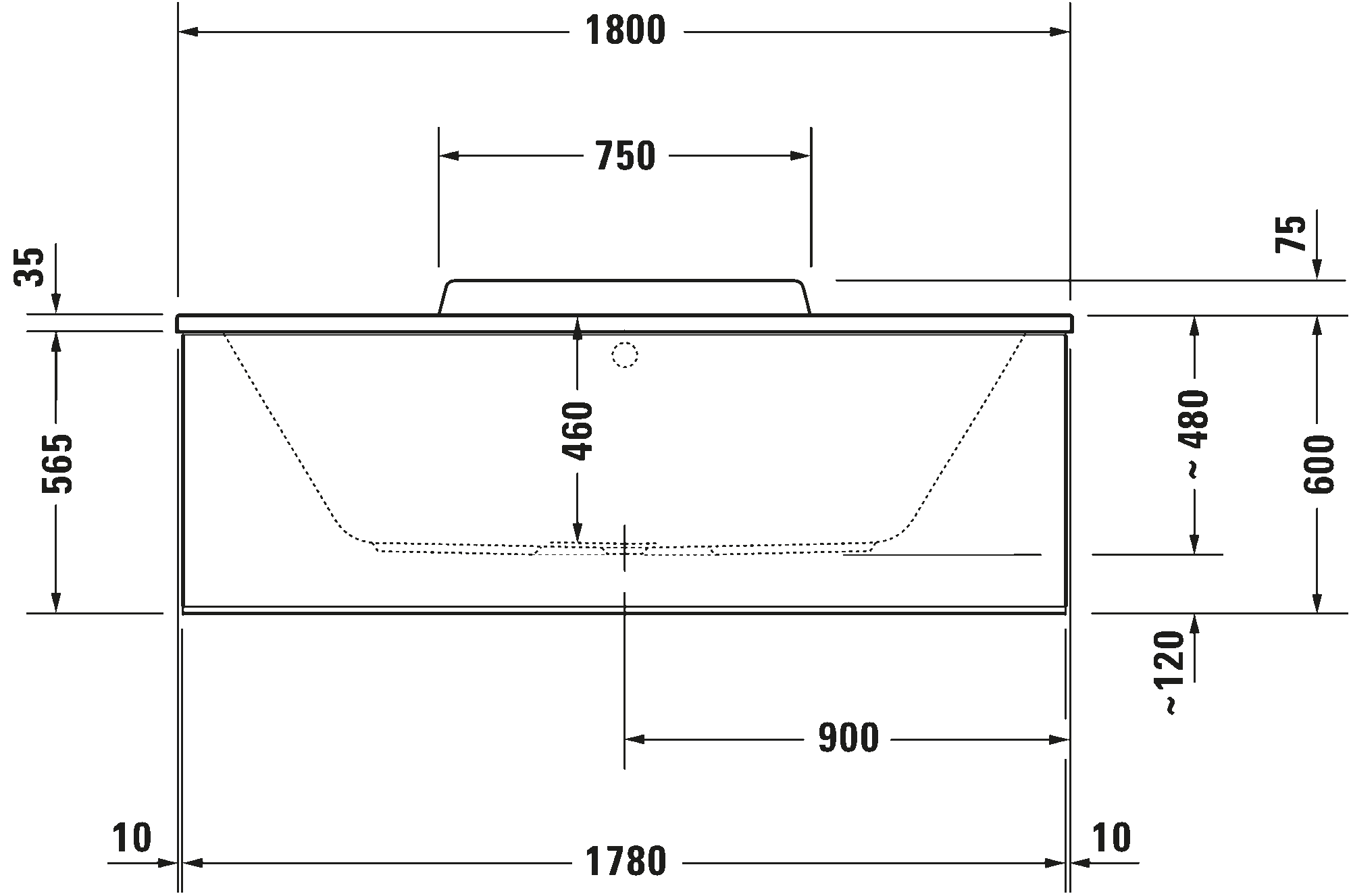

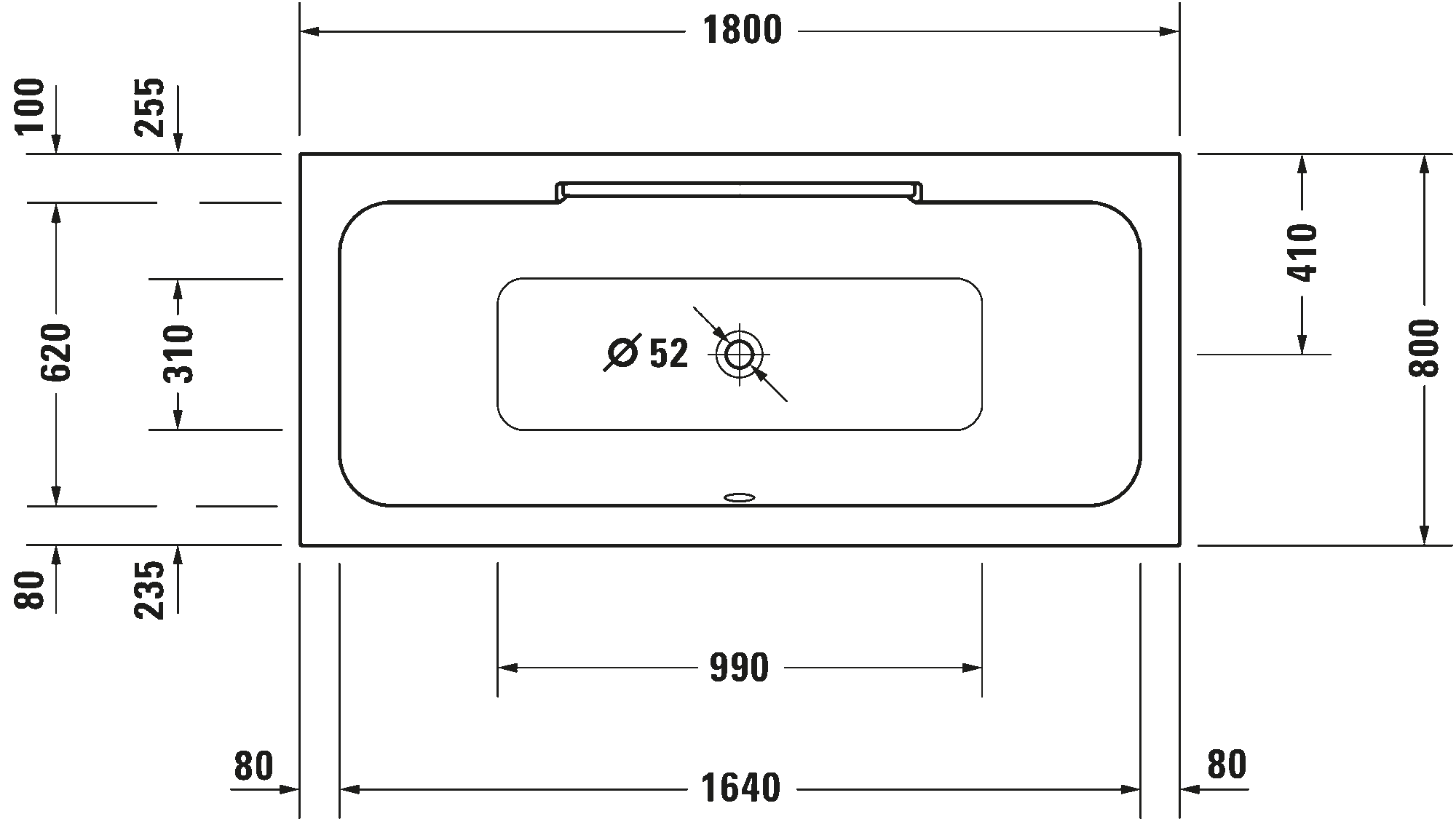

Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Upon request cut-out templates are available from Duravit. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customised installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Instructions
Planning data
Product documentation
