Categories Actuator plates DuraSystem® #WD1012

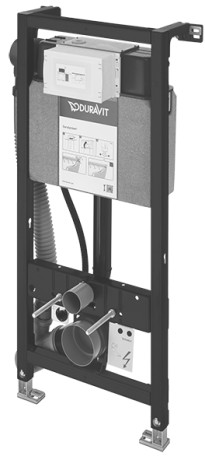

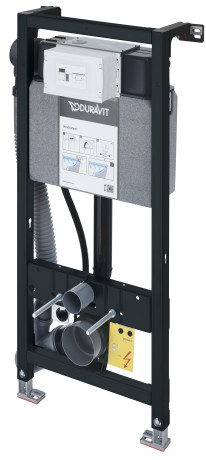

Toilet frame, manual odor extraction #WD1012
self-supporting, for drywall construction, suitable for panelling with plasterboards, powder-coated frame, for WC ceramics with a projection of <= 625 mm, adjustable feet 0–240 mm, SensoWash ready, mechanical front actuation, metre tear and center marker, tool-free assembly of the transparent service opening plate, Requirements of the leading standards of noise protection DIN 4109 and VDI 4100 can be achieved (in combination with noise reduction set # WD6015 000 000), odor extraction with integrated fan, fan operation manual, airtight check valve, Cistern, concealed cistern CE tested in accordance with EN 14055, maximum flush volume 9l, marking of filling height, Dual flush technology, adjustable flush volume, insulated against condensation, throttle for adjustment of the flushing flow, Scope of delivery, pre-installation kit including power supply 100-240 V AC / 24 V DC, PE-wall-mounted toilet connection bend DN 90/90, PE-wall-mounted toilet connection set DN 90, wall-mounted toilet fastening set M12, mounting accessoires for lightweight construction, mounting accessoires for single installation, PE-wall-mounted toilet reduction DN 90/110 for outlet bend, 2 cover caps, pre-installed toilet frame for wall-mounted toilet
Because of the low fan capacity and the relating low exhaust air volume the odor extraction is not a replacement for a room ventilation system as per DIN 18017. The odor extraction can not be combined with the ceramics #254609, #021009, #221509. , To use the odor extraction of the toilet frame, manual odor extraction a customer installed switch is needed., Pre-installation kit including power supply is part of the toilet frame.
Variants
| Color 00 | 500 x 1148 mm | 15.900 kilogram | WD1012000000 | |
Suitable products
| Dimension | Weight | Order number | ||
|
Actuator plate A1, for toilet, plastic | 0.300 kilogram | WD5001 | |
| mechanical actuation, for surface mounted installation, Dual flush technology, Scope of delivery, installation frame, mounting accessoires, push rods, front plate plastic | ||||
|
Actuator plate A1, for toilet, glass white | 0.700 kilogram | WD5002 | |
| mechanical actuation, for surface mounted installation, Dual flush technology, Scope of delivery, installation frame, mounting accessoires, push rods, front plate glass |
Installation accessories
|
Connecting set | 100691 | ||
| in combination with SensoWash shower toilet seat, for in-wall carriers H=112-115 cm, with conduit pipe for connection inside the tank | ||||
|
Flush-mounted installation frame, for plastic | 0.300 kilogram | WD6001 | |
| for flush mounted installation, adjustable in depth, for wall coverings 6 - 15 mm , for drywall construction plating with minimum thickness 2 x 12,5 mm, plastic | ||||
|
Wall-mounted toilet connection set, elongated, 365 mm | 0.800 kilogram | WD6010 | |
| extended connection set, Scope of delivery, flush pipe with sleeve, straight connector with sleeve, wall-mounted toilet fastening set M12, 2 cover caps, for wall-mounted toilets | ||||
|
Connecting set | 100731 | ||
| in combination with SensoWash Starck f, for in-wall carriers with conduit pipe for connection inside the tank | ||||
|
Extension set 240 mm | 1.500 kilogram | WD6012 | |
| for extended height adjustment up to max. 480 mm, Scope of delivery, 2 powder-coated feet, 2 plastic support brackets, mounting accessoires, for a raised floor construction | ||||
|
Noise reduction set | 0.200 kilogram | WD6015 | |
| self-adhesive, Scope of delivery, set consists of 4 pieces , for structure-borne sound isolation between installation frame and building | ||||
