Series D.1 Faucets #D11110008

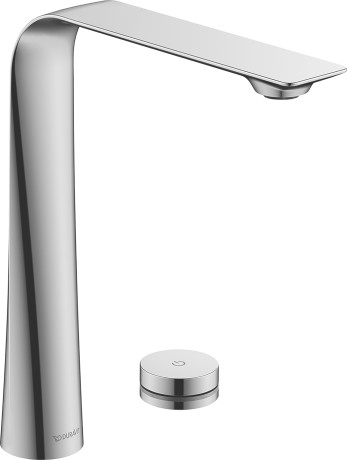

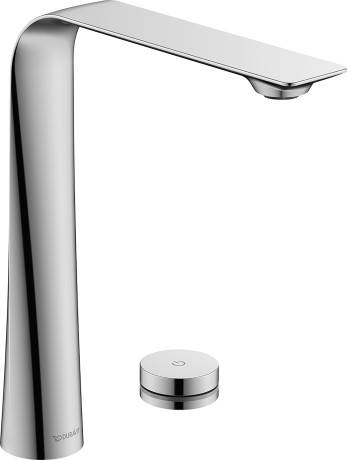

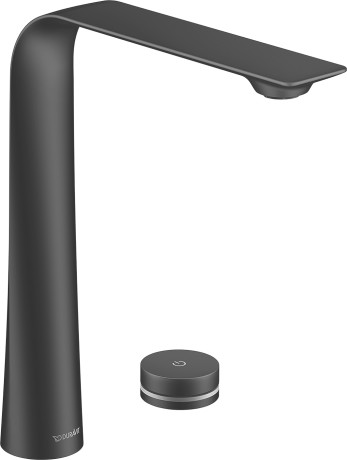

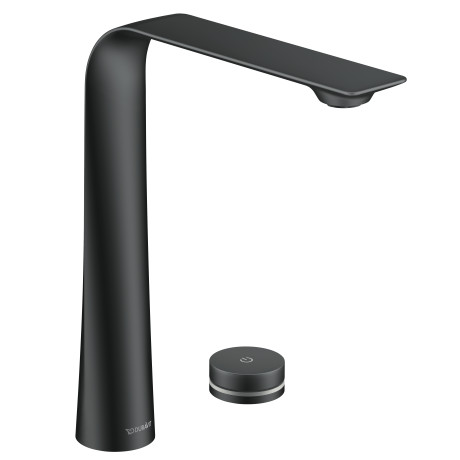

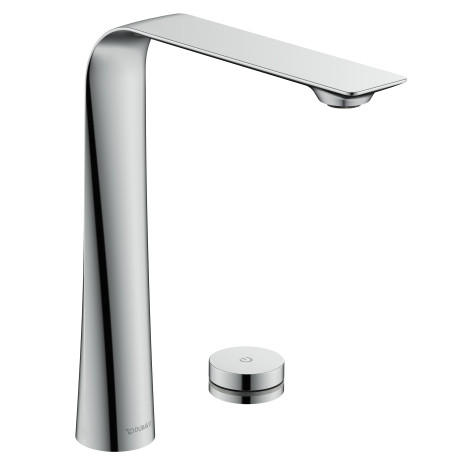

2-hole electronic basin mixer XL with built-in power supply #D11110008
Item may differ from picture. Decorations and accessories are not included.
Top Downloads

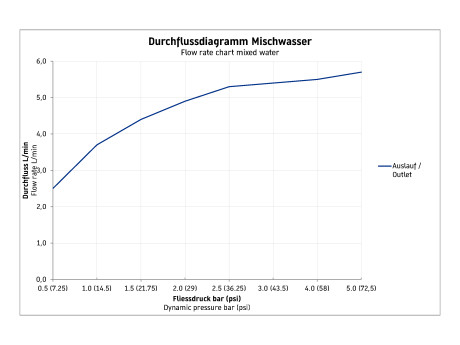

electronic control via operating knob, temperature change simply by rotating visualized by color light change, locking function for ease of cleaning, flow rate 5,0 l/min (3 bar), maximum temperature and waterflow time can be set individually, Permanent waterflow for thermal disinfection activatable, hygienic flush adjustable, scalding protection, normal spray, aerator adjustable, projection 180 mm, recommended operating pressure 1 - 5 bar, without pop-up waste set, without volume control, includes: spout, electronic control unit, operating knob (cable length 1200 mm)
Variants
select| Color 10, chrome | D11110008010 | |||
Suitable accessories for #D11110008010
| Dimension | Weight | Order number | ||
|
Washbowl | 13.600 kilogram | 231460 | |
| ground, with overflow, without tap platform, fixings included, overflow clip chrome included | ||||
|
Washbowl | 7.500 kilogram | 232144 | |
| ground, without overflow, without tap platform, fixings included | ||||
|
Washbowl | 7.300 kilogram | 237140 | |
| without overflow, without tap platform, fixings included | ||||
|
Washbowl | 11.000 kilogram | 237260 | |
| without overflow, without tap platform, fixings included | ||||
|
Vanity basin | 9.300 kilogram | 035860 | |
| countertop basin, without overflow, without tap platform | ||||
|
Vanity basin | 8.200 kilogram | 033043 | |
| undercounter basin, with overflow, fixings for installation in wooden consoles included, without tap platform | ||||
|
Vanity basin | 7.400 kilogram | 030543 | |
| undercounter basin, with overflow, without tap platform, fixings for installation in wooden consoles included | ||||
|
Vanity basin | 4.700 kilogram | 031927 | |
| undercounter basin, with overflow, without tap platform, underneath glazed, fixings for installation in wooden consoles included | ||||
|
Vanity basin | 4.900 kilogram | 031932 | |
| undercounter basin, with overflow, without tap platform, underneath glazed, fixings for installation in wooden consoles included | ||||
|
Vanity basin | 5.500 kilogram | 031937 | |
| undercounter basin, without overflow, without tap platform, underneath glazed, fixings for installation in wooden consoles included | ||||
|
Vanity basin | 5.600 kilogram | 031942 | |
| undercounter basin, without overflow, without tap platform, underneath glazed, fixings for installation in wooden consoles included | ||||
|
Vanity basin | 5.200 kilogram | 031840 | |
| countertop basin, with overflow, without tap platform, underneath glazed | ||||
|
Vanity basin | 5.400 kilogram | 031845 | |
| countertop basin, without overflow, without tap platform, underneath glazed | ||||
|
Vanity basin | 7.300 kilogram | 046847 | |
| countertop basin, with overflow, without tap platform, underneath glazed | ||||
|
Washbowl | 4.900 kilogram | 040833 | |
| with overflow, without tap platform, overflow clip chrome included | ||||
|
Washbowl | 9.800 kilogram | 040853 | |
| ground, with overflow, without tap platform, fixings included, overflow clip chrome included | ||||
|
Washbowl | 11.200 kilogram | 044546 | |
| ground, without overflow, fixings included, without tap platform | ||||
|
Washbowl | 12.000 kilogram | 045550 | |
| ground, without overflow, without tap platform, fixings included | ||||
|
Washbowl | 14.200 kilogram | 045560 | |
| ground, without overflow, without tap platform, fixings included | ||||
|
Vanity basin | 9.400 kilogram | 033856 | |
| undercounter basin, with overflow, without tap platform, fixings for installation in wooden consoles included | ||||
|
Vanity basin | 10.000 kilogram | 033849 | |
| undercounter basin, with overflow, without tap platform, fixings for installation in wooden consoles included |
Suitable accessories for #D11110008046
| Dimension | Weight | Order number | ||
|
Push-open waste | 0.400 kilogram | 005052 | |
| for washbasins with overflow | ||||
|
Slotted waste | 50 mm | 0.300 kilogram | 005024 |
| for washbasins without overflow | ||||
|
Slotted waste | 75 mm | 0.400 kilogram | 005038 |
| for washbasins without overflow |
Downloads
Hint:

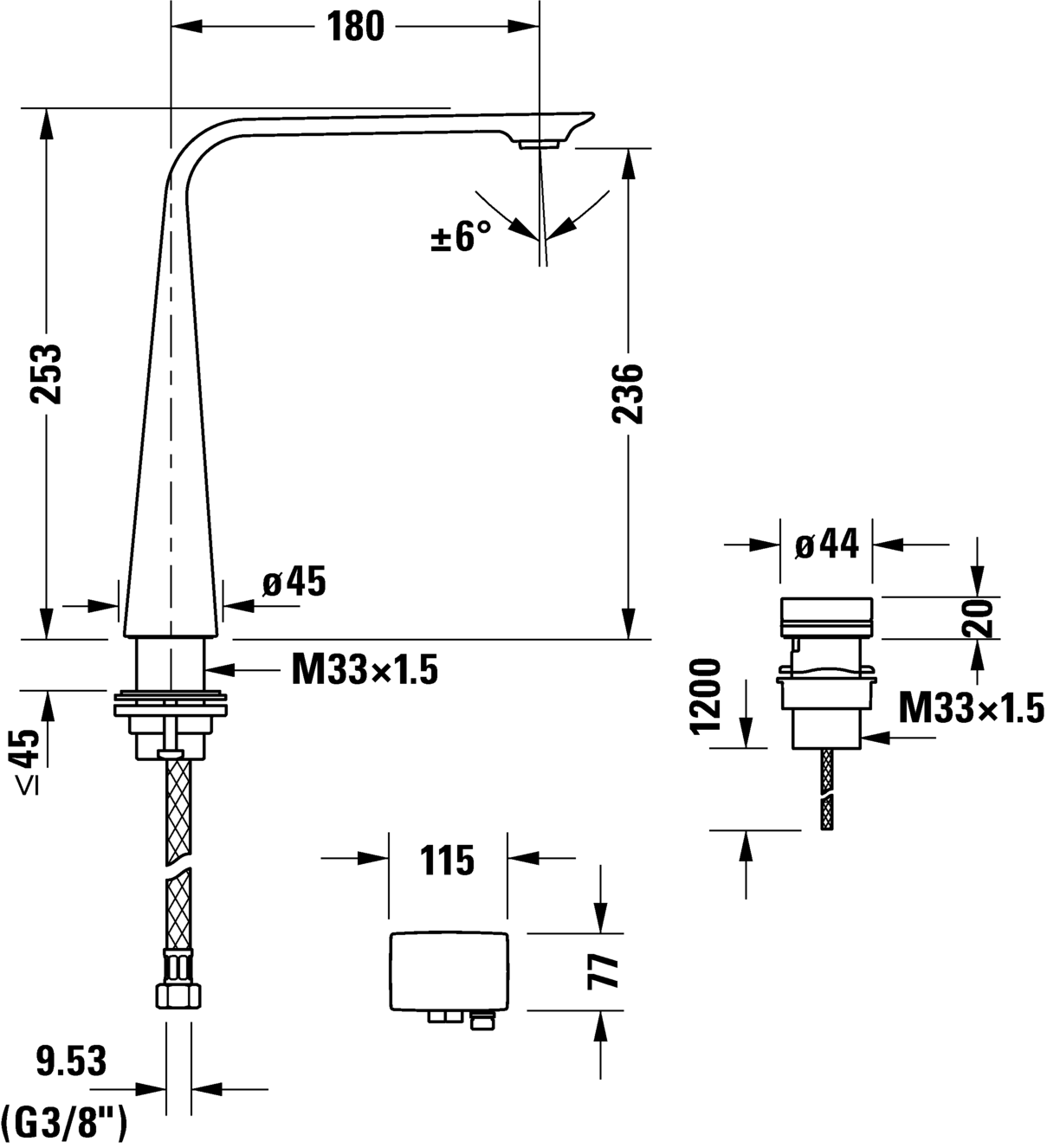

Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Upon request cut-out templates are available from Duravit. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customised installation scenarios, can only be taken from the finished ceramic piece.
Instructions
Product documentation
